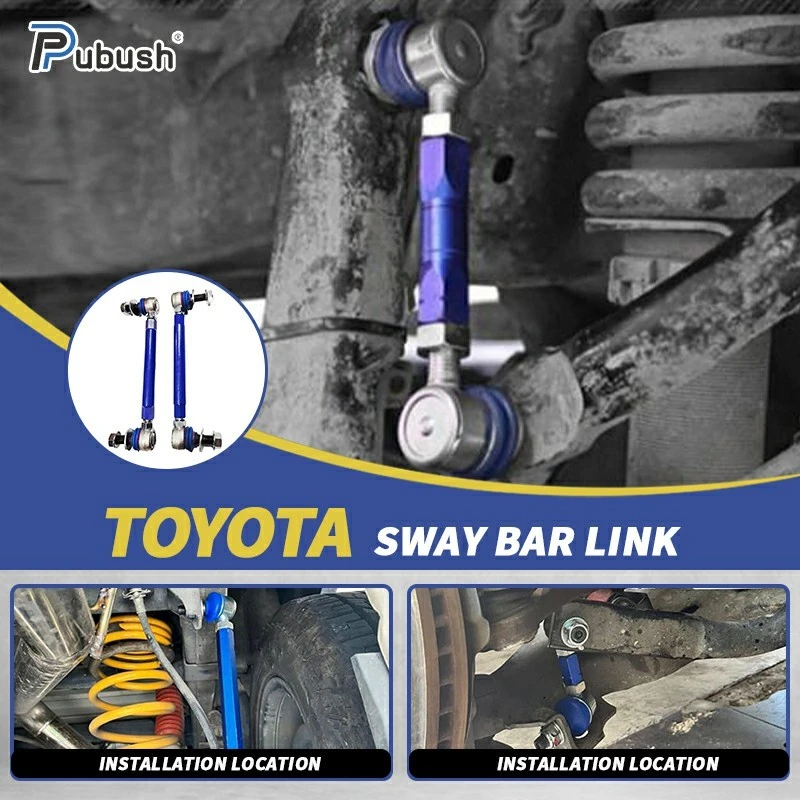

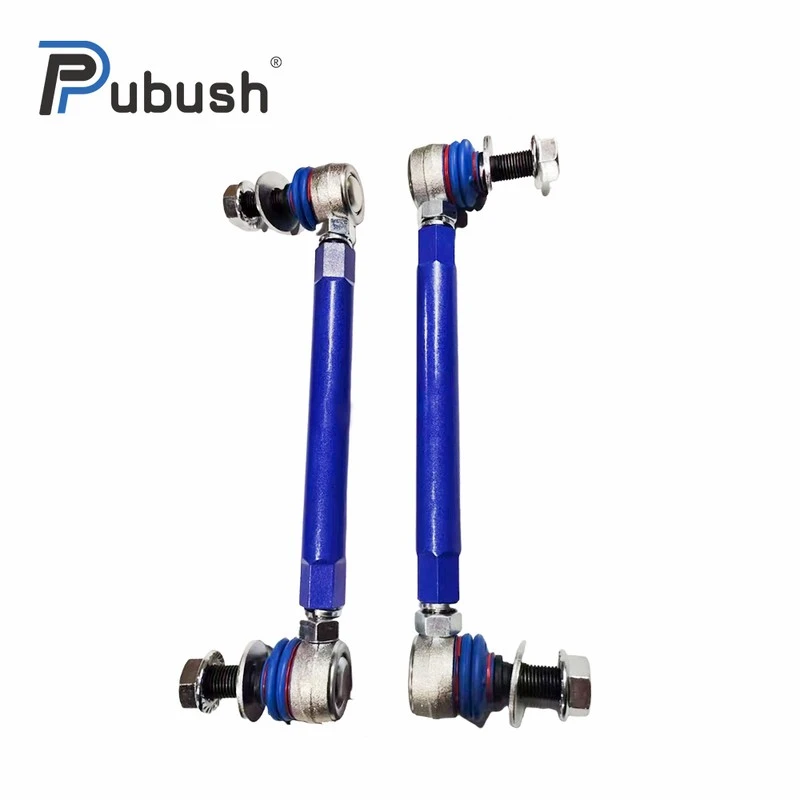

Extended Sway Bar End Links

Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of extended sway bar end links in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable extended sway bar end links from our factory. We also accept customized orders.

√TOYOTA HIACE

✔ Extended Sway Bar End Links are specialized stabilizer bar connectors engineered for off-road vehicles equipped with lifted suspensions (2.5-inch to 6-inch lift kits).

✔ After a vehicle undergoes chassis lifting, the stock end links become too short. This causes interference between the stabilizer bar and lower control arms, while creating an abnormal operating angle for the anti-sway bar and diminishing roll stabilization performance.

✔ Based on precise calculations of the linear correlation between lift height and link length, this product lineup offers multiple extended sizes ranging from 9 inches to 18 inches with 1-inch incremental steps. This ensures the stabilizer bar runs parallel to the ground when the vehicle is stationary on level ground.

✔ The link body is fabricated from cold-drawn seamless steel pipe with a wall thickness of 4.5 mm. High-strength ball joint housings are welded to both ends, and all welds undergo 100% magnetic particle inspection.

✔ Inside each ball joint is a double-row ball bearing structure paired with wear-resistant polyoxymethylene (POM) washers. Rotational torque remains steady between 0.8–1.2 N·m with no binding or abnormal noise.

✔ The bushings are manufactured from imported polyurethane with a hardness rating of 95A Shore, delivering outstanding creep resistance and elastic recovery.

✔ The installation kit includes extended bolts, self-locking nuts and locating shims, compatible with all mainstream lift kit brands such as Rough Country, Skyjacker and Pro Comp.

✔ The surface is treated with zinc-nickel alloy plating plus black passivation, achieving Class 10 corrosion resistance.

✔ The biggest merit of Extended Sway Bar End Links is restoring the proper operating geometry of the anti-sway bar after chassis lifting. Short stock end links tilt the ends of the stabilizer bar upward once the vehicle is lifted, resulting in roughly 40% lower roll stiffness. By means of precise extension, our product levels the stabilizer bar lever arm and brings roll control performance back to over 95% of the factory specification, greatly enhancing vehicle stability during high-speed lane changes and sharp turns.

✔ The polyurethane bushings feature low compression set. They maintain tight fit between bushings and ball studs under repeated impacts, minimizing rattling noise and free play. Service life is 2 times longer than that of rubber bushings.

✔ The extended design delivers increased suspension travel for users who frequently carry heavy loads or tow trailers, preventing contact between the links and the frame under extreme compression.

✔ Stainless steel lock washers and bolts with Nylok coating come as standard equipment, effectively stopping nuts from loosening caused by off-road vibration and boosting overall safety.

Every Pubush bushing is covered by a 1-year warranty covering defects in raw materials and manufacturing, commencing upon item delivery. This warranty does not apply to damages caused by improper operation, lack of routine maintenance or incorrect fitting.
