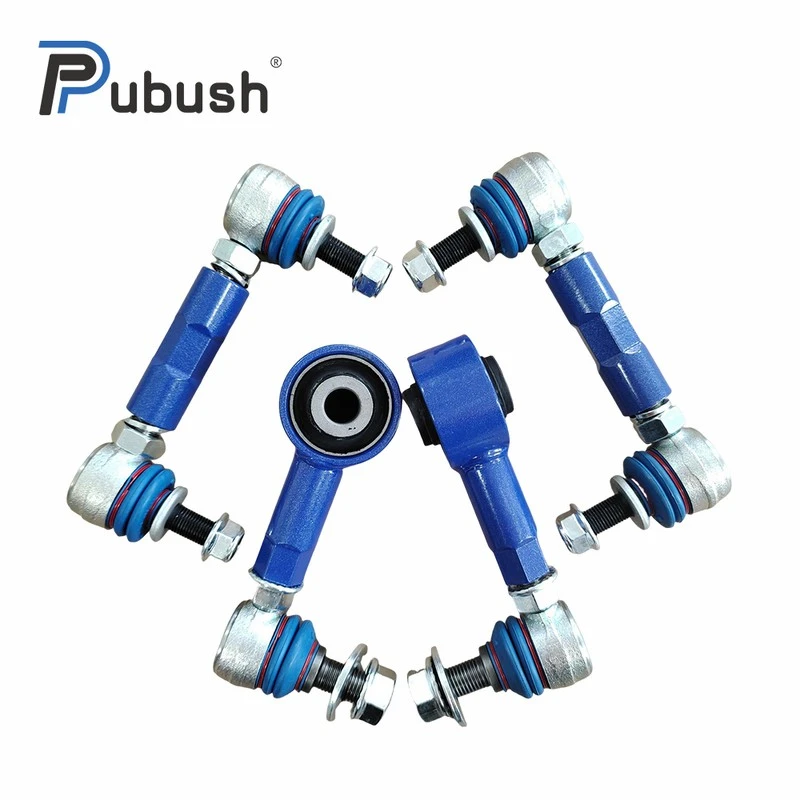

Reinforced Sway Bar Link Kit

Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of reinforced sway bar link kit in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable reinforced sway bar link kit from our factory. We also accept customized orders.

√TOYOTA LAND CRUISER LC300

✔ Sway bar links are among the most frequently overlooked components in a vehicle's suspension system - yet when they fail, the consequences range from annoying cabin noise to catastrophic loss of vehicle control in emergency situations.

✔ Our comprehensive Reinforced Sway Bar Link Kit addresses this critical suspension weak point with a fully reinforced design that substantially exceeds OEM specifications in every measurable performance category.

✔ In practice, the kit is designed for universal fitment across a wide range of popular truck and SUV platforms, with multiple length options to accommodate stock ride height through moderate lift configurations.

✔ At the same time, by replacing both left and right end links simultaneously with reinforced components, the kit restores balanced, symmetrical sway bar function and eliminates the handling asymmetry that occurs when only one failing link is replaced.

✔ This all-inclusive solution takes the complexity out of sway bar link replacement, ensuring you have exactly the right components for a complete, professional-quality installation.

✔ The links utilize a monoblock construction machined from a single billet of high-strength steel, eliminating welds and threaded joints that create stress risers and potential failure points.

✔ By design, the oversized bushing surface area - 40% larger than OEM equivalents - distributes load across more material, dramatically reducing bushing compression set and extending service intervals.

✔ Statistical process control monitoring during production guarantees that every link in every kit meets the same exacting specifications, with real-time adjustment of tool offsets to maintain perfect consistency.

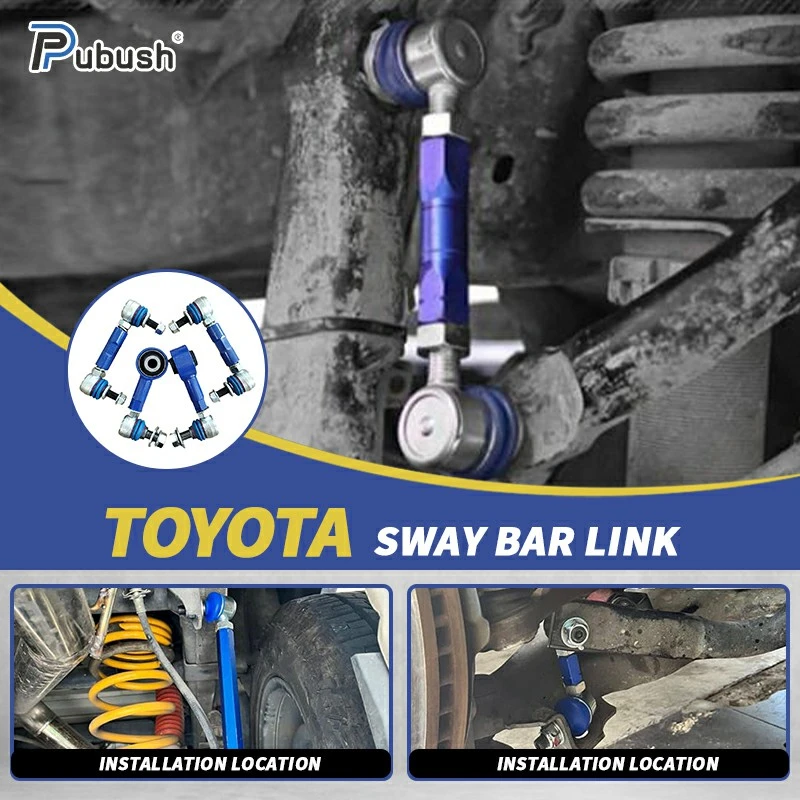

1. Lift vehicle safely, remove factory end links after applying penetrating oil.

2. Adjust new links to approximate length matching original unit. Ensure left & right links are identical length.

3. Fit new sway bar links hand-tight, do not torque fully at this stage.

4. Lower vehicle to ground so suspension sits under normal load. Adjust link length to eliminate preload on sway bar.

5. Lock jam nuts securely, then torque top and bottom fasteners to vehicle specification.

6. Test drive, check for noises or interference. Re-torque all fasteners after 80–100 km driving.

✔ Never finalize length adjustment while wheels are off ground.
✔ Uneven left-right length will cause uneven handling performance.
✔ Avoid excessive length adjustment to prevent chassis interference.
✔ Reinspect all tightening torque after off-road use

✔ What separates the Reinforced Sway Bar Link Kit from piecemeal alternatives is the system-level engineering approach: every component was designed to work in harmony, delivering performance no mix-and-match solution can match.

✔ Consequently, the gusseted design distributes cornering forces across the entire link structure, preventing the concentrated stress that causes conventional links to develop microscopic cracks that grow into complete failures.

✔ Unlike the harsh ride associated with solid polyurethane bushings, the bonded dual-layer design progressively stiffens as loads increase, providing comfort during normal driving with instant firmness during aggressive cornering.

Every Pubush bushing is covered by a 1-year warranty covering defects in raw materials and manufacturing, commencing upon item delivery. This warranty does not apply to damages caused by improper operation, lack of routine maintenance or incorrect fitting.
