Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of universal polyurethane bushings in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable universal polyurethane bushings from our factory. We also accept customized orders.

NISSAN PATROL 1988-1997 - Y60 GQ Wagon

NISSAN PATROL 1997-2016 - Y61 GU Wagon

NISSAN PATROL GR 1988-1997 - Y60 GQ Cab Chassis (Coil Spring Front & Rear)

FORD AUSTRALIA MAVERICK 02/1988 - 02/1994 - DA

Front and Rear

Nissan Patrol / Toyota Lancruiser, Prado Radius Arm to Diff Mount Kit

● Tools Required:

24mm Socket & Ratchet, 19, 24mm Ring Spanner, Hydraulic workshop press.

 Removal of the trailing arms can be performed with the vehicle at ride height and on the ground as long as only one trailing arm is removed at a time and a bottle jack is used to stop the differential from twisting;

Remove the nut or nut and bolt retaining the front trailing arm to chassis mount (Nissan is a pin mount with a nut, Toyota is a bush mount with a nut and bolt), Figure 01.

 Remove the front trailing arm to differential mounting nuts and bolts (24mm). It may be necessary to loosen the nuts on both side arms and use a bottle jack under the differential to stop twist. On Nissan it may be necessary to remove the track rod on one side to allow the arm to be removed and on LWB model remove the stabilizer bar, Figure 02;

 Remove the front trailing arm and press out the two original trailing arm to differential bushes;

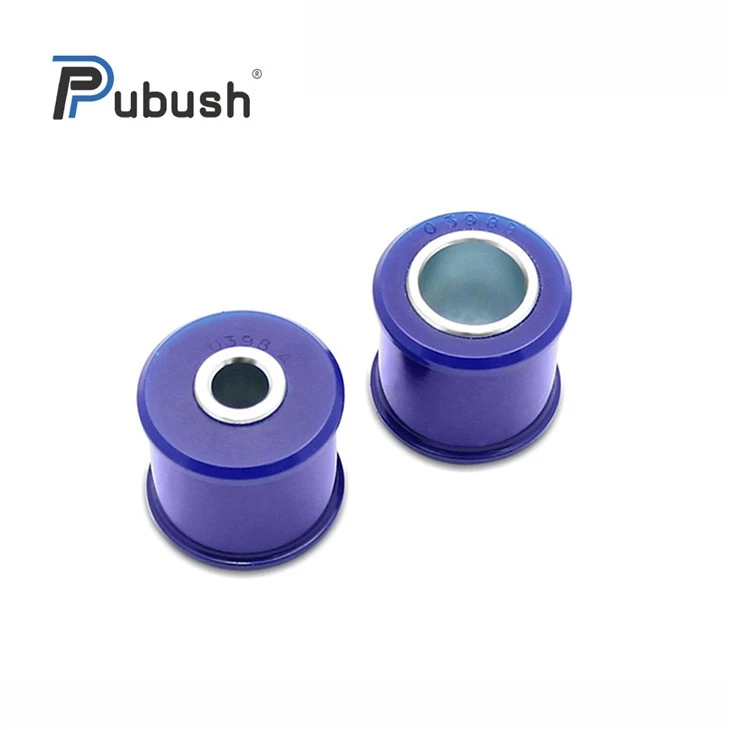

 Press in the new 'RFK0398K' polyurethane bush, then apply the white grease supplied to the bore of the bush and outside of the crush tube, and push it in, Figure 03;

 Refit the arm in the reverse order of removal, repeat the procedure for the other arm;

 Carry out a wheel alignment.

 The Radius Arms & Panhard Rods Bush Kit is a high-performance suspension component designed to enhance the stability, durability, and off-road performance of specific vehicle models.

 Crafted from premium Polyurethane+Steel, this kit integrates the advantages of both materials-polyurethane's excellent buffering and vibration-reducing properties, paired with steel's strong load-bearing capacity-to ensure long-lasting reliability even in harsh driving conditions.

 Our kit features high-quality Universal polyurethane bushings, which offer superior wear resistance, chemical resistance, and structural stability compared to traditional rubber bushings, making it an ideal upgrade for off-road enthusiasts and daily drivers alike.

 Our polyurethane bushing kits are engineered to redefine durability and performance for off-road and heavy-duty applications.

 Unlike traditional rubber bushings that degrade quickly under extreme stress, temperature fluctuations, and harsh road conditions, our polyurethane components offer exceptional resistance to wear, tear, and chemical corrosion.

 This superior material stability eliminates the premature softening, cracking, and deformation common in OEM rubber parts, ensuring consistent suspension geometry and tight handling even after thousands of miles of rugged use.

 By reducing unwanted suspension flex and vibration, these bushings deliver precise steering response, improved cornering stability, and enhanced off-road articulation-whether you're navigating rocky trails or hauling heavy loads.

 With a lifespan significantly longer than standard rubber alternatives, they provide a cost-effective upgrade that keeps your vehicle performing at its best for years to come.

We have extensive experience collaborating with overseas wholesalers and distributors and offer prototyping services.

Polyurethane (PU) bushings for 4WD off-road suspension systems are among our core products. Our bushings are suitable for a wide range of applications, including coil spring spacers, control arm bushings, leaf spring shackle bushings, sway bar bushings, radius arm bushings, shock absorber bushings, anti-roll bar bushings, trailing arm bushings, bump stops, and steering rack bushings. We have been exporting to markets in Australia and the United States for many years. A key strength of ours is the broad vehicle compatibility of our products. Over the past decade, our high-quality products have earned widespread recognition from customers. We welcome you to contact us to discuss business opportunities.

 All Pubush bushings carry a 1-year warranty against material & workmanship defects, valid from delivery date. Warranty excludes damage from misuse, neglect or wrong installation.
