Polyurethane Bushings By Size

Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of polyurethane bushings by size in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable polyurethane bushings by size from our factory. We also accept customized orders.

NISSAN PATROL 1988-1997 - Y60 GQ Wagon

NISSAN PATROL 1997-2016 - Y61 GU Wagon

NISSAN PATROL GR 1988-1997 - Y60 GQ Cab Chassis (Coil Spring Front & Rear)

FORD AUSTRALIA MAVERICK 02/1988-02/1994 - DA

Front and Rear

Nissan Patrol / Toyota Land Cruiser, Prado
Radius Arm to Differential Mount Bushing Kit

Tools You Will Need

• 24mm socket with ratchet handle
• 19mm & 24mm combination spanners
• Hydraulic workshop press

Installation Steps

1.The radius arms can be removed with the vehicle sitting on the ground at its normal ride height. Always work on only one arm at a time, and use a bottle jack under the differential housing to prevent it from twisting during the process.

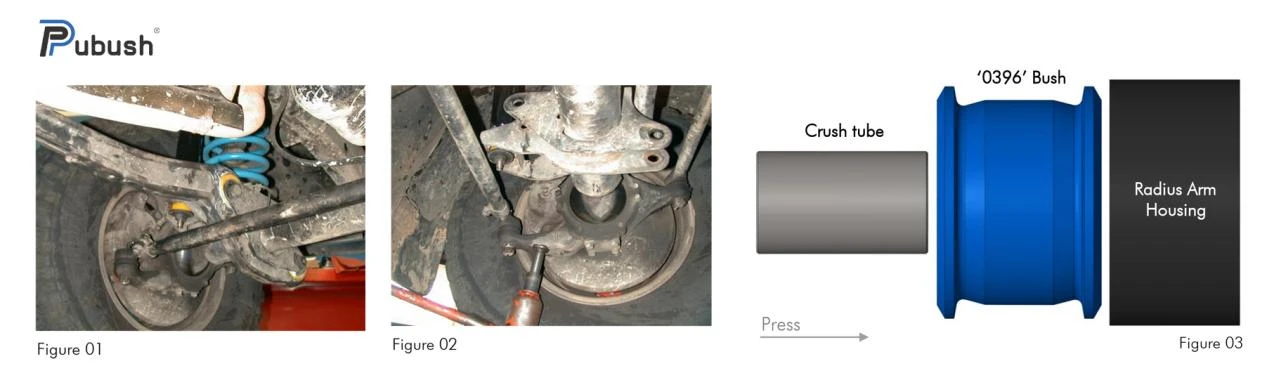

2.Remove the fastener that secures the front radius arm to the chassis. On Nissan Patrols, this is a pin-style mount with a nut; on Toyota models, it is a bushing mount with a nut and bolt (see Figure 01).
3.Undo the 24mm nuts and bolts that connect the front radius arm to the differential. It is recommended to loosen the fasteners on both arms and use a bottle jack under the diff to prevent rotation. On Nissan Patrols, removing the track rod on one side may be required for clearance. On long-wheelbase (LWB) models, the stabilizer bar must also be removed (see Figure 02).
4.Detach the front radius arm, then use the hydraulic press to push out the two original differential-side rubber bushings.
5.Press the new '0398' polyurethane bushing into the arm. Next, apply the supplied white grease to the inner bore of the bushing and the outer surface of the crush tube, then slide the tube into place (see Figure 03).
6.Refit the radius arm by reversing the removal steps. Repeat the entire procedure for the opposite side.
7.Once both sides are complete, perform a full wheel alignment to restore correct suspension geometry.

Component Overview (Figure 03)
Crush tube: Metal sleeve for structural support and alignment
'0396' Polyurethane Bushing: The wear-resistant core component, pressed into the housing
Radius Arm Housing: The main body of the radius arm where the bushing is installed

 Crafted from high-quality Polyurethane+Steel, this bushing combines the flexibility of rubber with the durability of polyurethane and steel, ensuring excellent buffering, vibration reduction, and load-bearing performance.

 What makes our product stand out is the inclusion of precision-engineered polyurethane bushings by size, which are tailor-made to match the standard dimensions of target vehicle models, guaranteeing a perfect fit and seamless integration with the original suspension system.

 Designed with vehicle-specific precision, our polyurethane bushing kits offer a seamless fit and straightforward installation process, making them ideal for both professional mechanics and DIY enthusiasts.
 Beyond easy installation, these kits maintain factory-style suspension travel while enhancing rigidity, preserving your vehicle's ride comfort while eliminating the vague handling caused by worn rubber.

 All Pubush bushings carry a 1-year warranty against material & workmanship defects, valid from delivery date. Warranty excludes damage from misuse, neglect or wrong installation.
