Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of precision polyurethane bushing component kit in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable precision polyurethane bushing component kit from our factory. We also accept customized orders.
Compatible Car Brand And Model
NISSAN PATROL 1988-1997-Y60 GQ Cab Chassis(Coil Spring Front & Rear)
NISSAN PATROL 1988-1997-Y60 GQ Wagon
NISSAN PATROL 1997-2016-Y61 Gu wagon
FORD AUSTRALIA MAVERICK 1988 -1994-DA
Fitting Position
Front and Rear

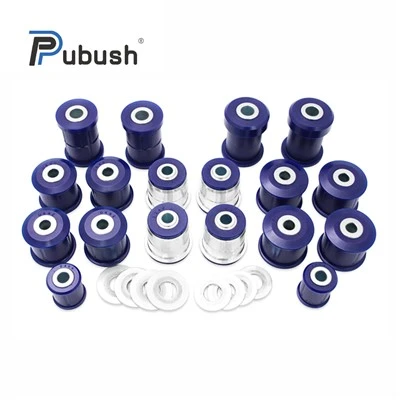

Kit Includes
| Component Name | Part Code | Specifications |
| Front Radius Arm To Diff Mount Bush Kit | RFK1721XK | 4B, 4T |
| Front Radius Arm To Chassis Mount Bush Kit | RFK0397K | 4B |
| Front and Rear Panhard Rod Bush Kit | RFK0398K | 4B, 4T |
| Rear Trailing Arm Upper and Lower Bush Kit | RFK0399K | 8B, 8T |
Fitting Position
Product Specifications
| Item | Details |
| PRODUCT NAME | Radius Arms & Panhard Rods Bush Kit - Extra Offset |
| MATERIAL | Polyurethane+Steel |
| BRAND | PUBUSH |
| SKU | RFK060ADJXK |
| SIZE | Standard |
Fitting Instructions RFK1721XK
Fitting Position
Nissan Patrol / Toyota Lancruiser, Prado Radius Arm To Diff Mount Kit

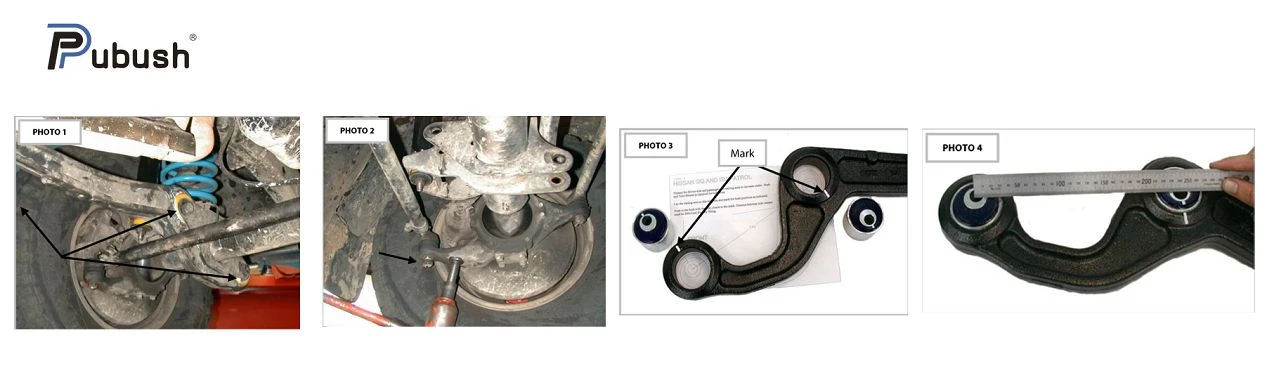

✔ Photo 1: Removal of the trailing arms can be performed with the vehicle at ride height and on the ground as long as only one trailing arm is removed at a time and a bottle jack is used to stop the differential from twisting.
Remove the nut or nut and bolt retaining the front trailing arm to chassis mount (Nissan is a pin mount with a nut, Toyota is a bush mount with a nut and bolt).
✔ Photo 2: Remove the front trailing arm to differential mounting nuts and bolts (24mm). It may be necessary to loosen the nuts on both side arms and use a bottle jack under the differential to stop twist. On Nissan it may be necessary to remove the track rod on one side to allow the arm to be removed and on LWB model remove the stabilizer bar.
✔ Photo 3: Remove the front trailing arm and press out the two trailing arm to differential bushes. Lay the arm on the template provided, and scribe the alignment marks as shown in photo. This will be the guide for locating the offset bushes.
✔ Photo 4: Press in the offset bush aligning the marks on the bush and the arm. (Note: Alignment mark located opposite the part number on the poly). Check that the distance between the hole centres is as recommended by the template. This will ensure ease of refitting.
Refit the arm in the reverse order of removal, repeat the procedure for the other arm and recheck and record the wheel alignment figures.
Our test Vehicle – Landcruiser 80 Series Before - +0.3 -0.5 After - +4.3 +3.4
✔ Note: Tighten the radius arm to diff mounting bolts to correct torque settings for the vehicle. Toyota 80 & 100 Series - 171 to 172Nm. Nissan Patrol - 157 to 215Nm.
Product Description
✔To unlock the true handling potential of your vehicle, upgrading the soft, flexible factory rubber bushings is an absolute necessity. Designed to deliver crisp road feedback and unmatched cornering stability, the Precision Polyurethane Bushing Component Kit is a premium upgrade for modern chassis. Without a doubt, whether you are navigating winding canyon roads, cruising on high-speed highways, or enjoying spirited weekend drives, this kit ensures total control.
✔ Crucially, it stabilizes the entire suspension geometry, preventing tire scrub and ensuring a significantly safer driving experience. It represents a vital upgrade for anyone looking to maximize steering feedback and build a highly responsive chassis. It is a critical investment for anyone seeking to eliminate handling slop and experience absolute precision behind the wheel.
Product Advantages
✔ One of the primary advantages of upgrading to the Precision Polyurethane Bushing Component Kit is the substantial reduction in steering wheel vibrations and body roll. Accordingly, by keeping the suspension arms firmly positioned, it ensures your tires maintain a perfect contact patch with the pavement.
✔ Advanced NVH tuning guarantees that while steering feel is significantly sharpened, cabin comfort is preserved for daily commutes. It eliminates the spongy feel of degraded stock bushings, replacing it with a firm, responsive connection to the highway. It maximizes tire contact patch area, ensuring that your vehicle's grip levels remain optimal at all times. It provides a noticeable improvement in vehicle turn-in response, overall handling agility, and stability on winding canyon roads.
Warranty
✔ All Pubush bushings carry a 1-year warranty against material & workmanship defects, valid from delivery date. Warranty excludes damage from misuse, neglect or wrong installation.
