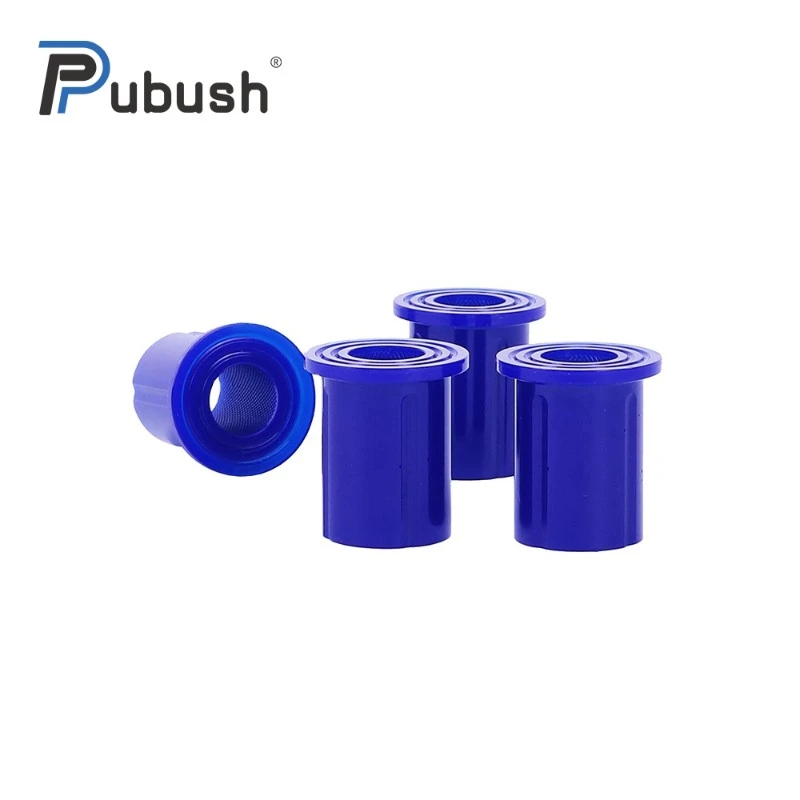

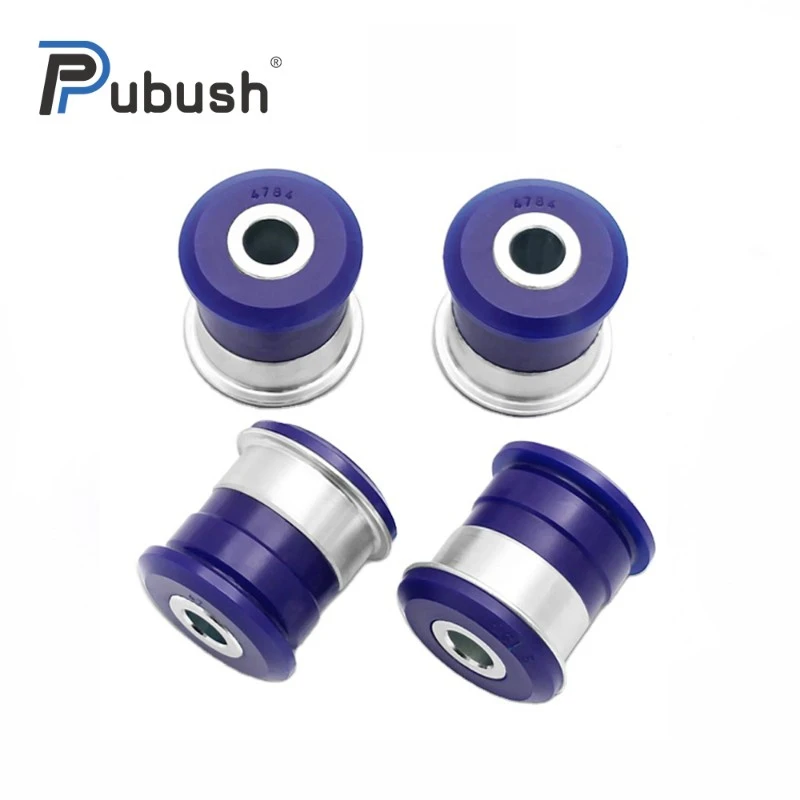

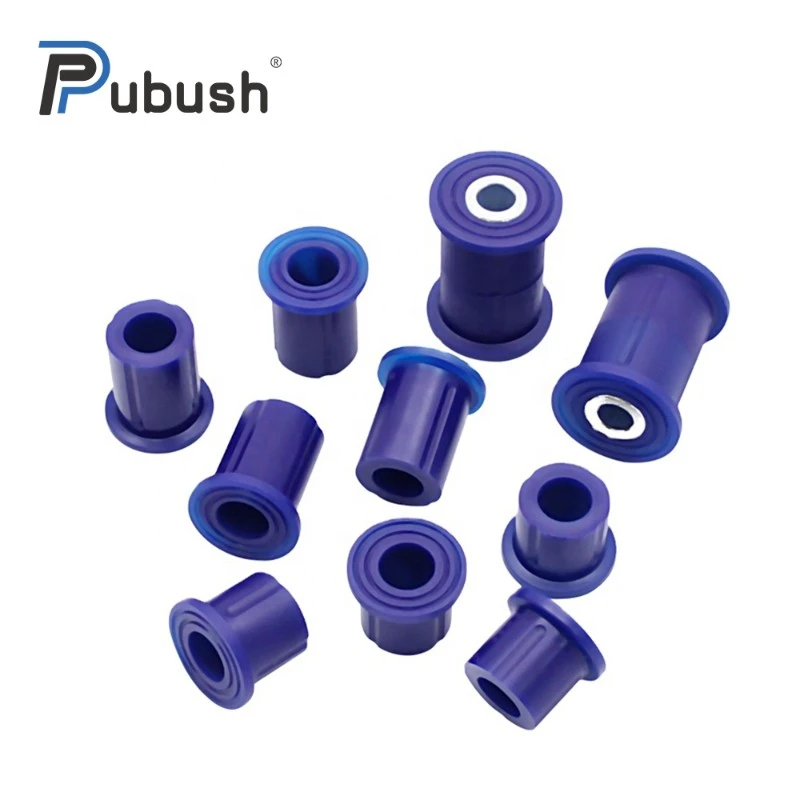

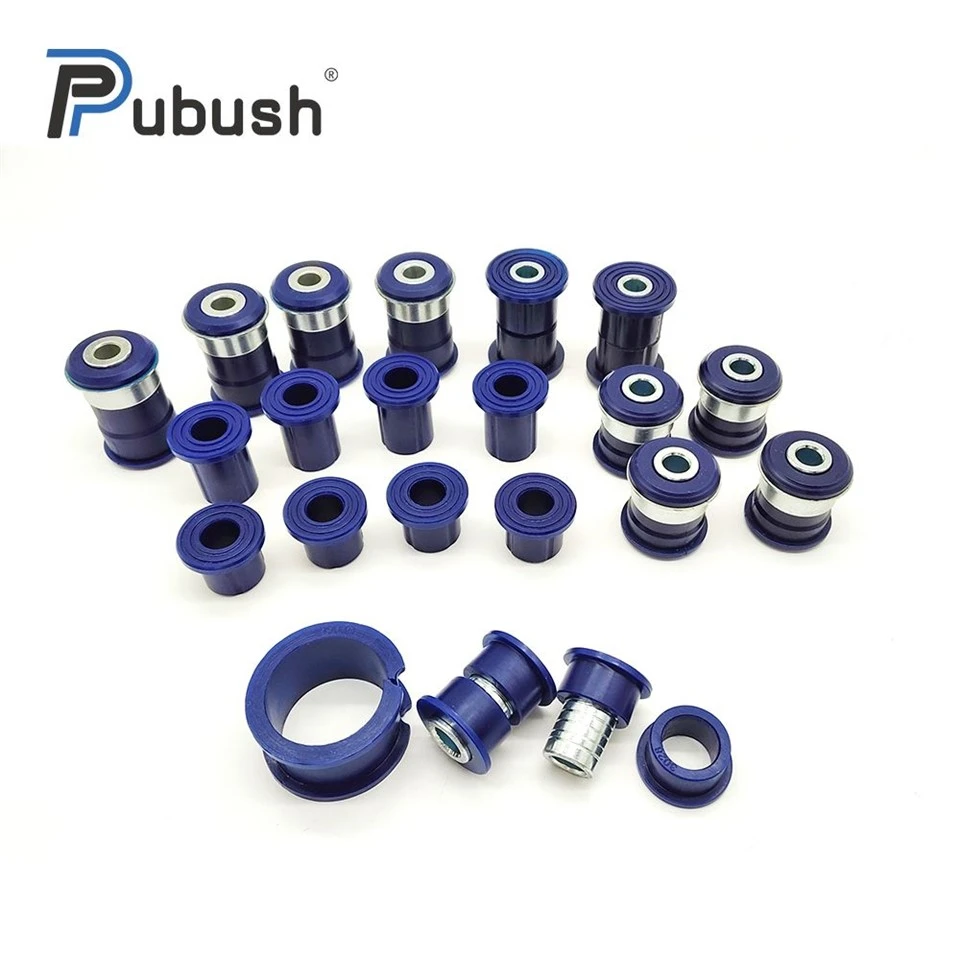

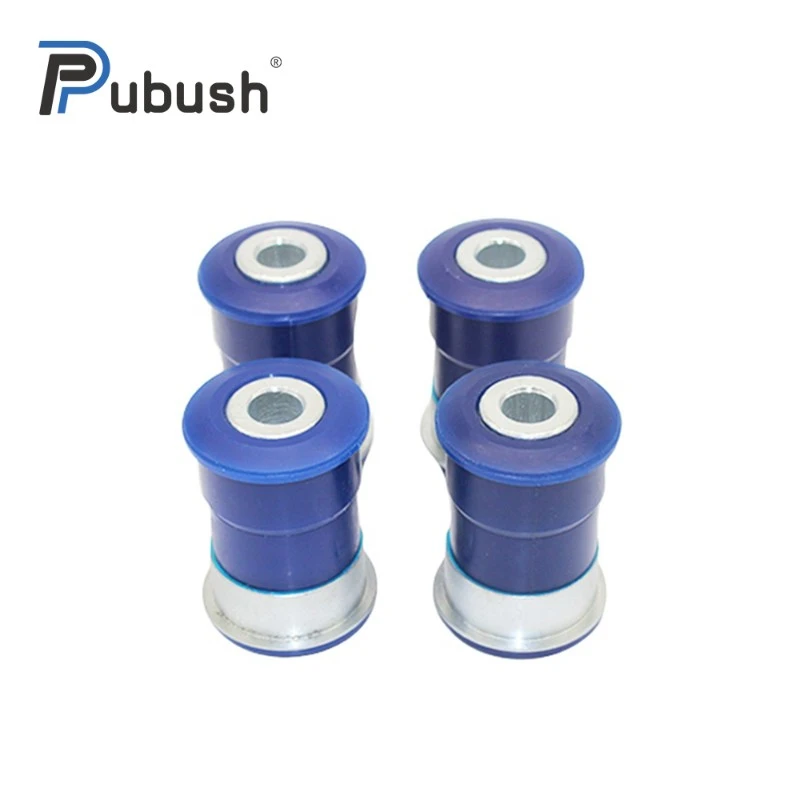

4x4 High Strength Polyurethane Bushing Kit

Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of 4x4 high strength polyurethane bushing kit in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable 4x4 high strength polyurethane bushing kit from our factory. We also accept customized orders.

NISSAN NAVARA D40

Front and Rear

● Note: Polyurethane bushes must be fitted to both sides of the vehicle.
✔ Wheel-align the vehicle before the job is started and note settings;
✔ With the vehicle on jack stands and the wheels unsupported, remove the lower control arms, the drive shaft will have to be removed from the hub;
✔ Remove the original bushes including the steel shell;
✔ Using the appropriate pressing tools support the control arm and press in the new bushes according to your desired setting. Note the orientation that the bushes should be installed, Figure 01 and Figure 02;

● Note: use flat plate that covers the end of the bush, DO NOT press on the shell.
✔ Apply the white grease supplied to the bore of the bush and the steel crush tubes. Push in the crush tubes (Note if you have purchased RFK4786XK you can stagger the crush tubes to +/- caster);
✔ Refit the control arms to the car, making sure you tighten the bolts with the arm held at 90 degrees to the mounts to give you the maximum camber/caster offset;
✔ Re-assembly the rest of the car. Carry out a wheel alignment;
✔ Note manufacture's torque setting must be used on all bolts and nuts.

● Depending on the kit you have purchased, both camber and caster can be adjusted. Check the before wheel alignment to see what setting you require:
✔ RFK4785K – standard replacement kit.
✔ RFK4786K – camber +/- both sides, approx. 0.5 degree change (has 4 offset bushes & 4 standard tubes).
✔ RFK4786XK – camber/caster +/- both sides, approx. 1 degree camber change (has 4 offset bushes & 4 offset tubes).

✔ Navigating rough terrains and steep trails exposes suspension systems to intense lateral forces that quickly wear down traditional rubber components. Designed specifically for extreme trail environments, the 4x4 High Strength Polyurethane Bushing Kit replaces weak rubber components with high-performance polyurethane parts. Remarkably, whether you are crawling over large boulders or traversing muddy tracks, this kit optimizes your suspension's articulation and tire traction. In addition to this, this comprehensive upgrade prevents the suspension from sagging under load, protecting vital chassis components from impact damage. Consequently, this kit is the perfect foundation for building a reliable, trail-ready suspension system that never backs down. Investing in this suspension upgrade will restore your vehicle's original trail response and handling stability while protecting other critical steering parts.

✔ At the heart of this trail-tested kit is a proprietary high-density polyurethane formulation engineered for extreme durability. By design, it prevents dirt, grit, and mud from penetrating the pivot points, avoiding the internal wear that destroys standard rubber bushings. The high load-bearing capability of this polyurethane compound ensures your wheels stay aligned, even under high lateral stress. The bushings incorporate deep internal grease grooves that trap lubrication, preventing squeaks and ensuring smooth, continuous rotation. This extreme level of technical design ensures that your suspension operates smoothly through its entire range of travel. This level of technical design ensures that your vehicle's steering remains exceptionally responsive and highly predictable in any high-stress situation.

✔ Drivers will immediately notice that the 4x4 High Strength Polyurethane Bushing Kit delivers sharper steering response, allowing for precise tire placement on narrow trails. As a result, this stability ensures that your alignment settings remain constant, preventing the steering wheel from pulling on bumpy trails. It delivers a solid, connected feel without introducing the harshness or metal-on-metal noise associated with spherical suspension joints. This resulting driving experience is highly predictable, allowing drivers to feel the trail and react with absolute confidence. You will feel a firmer, more positive connection to the ground, maximizing tire contact patch area and grip. It provides a noticeable improvement in vehicle turn-in response, overall handling agility, and stability on winding mountain trails.

✔ When it comes to durability, these high-grade polyurethane bushings are built to outlast traditional rubber parts by a wide margin. On top of that, it provides outstanding value by protecting other suspension components, including control arms, shocks, and steering linkages from wear. Each bushing is manufactured to strict tolerance standards, ensuring a perfect, snug fit in original factory brackets. Upgrade your rig today to experience the perfect combination of structural strength, trail precision, and legendary durability. Equip your vehicle with this advanced suspension solution to ensure safe, stable, and responsive handling on any trail. Equip your vehicle with this advanced suspension solution to ensure safe, stable, and responsive handling on every single journey you take.

✔ All Pubush bushings carry a 1-year warranty against material & workmanship defects, valid from delivery date. Warranty excludes damage from misuse, neglect or wrong installation.
