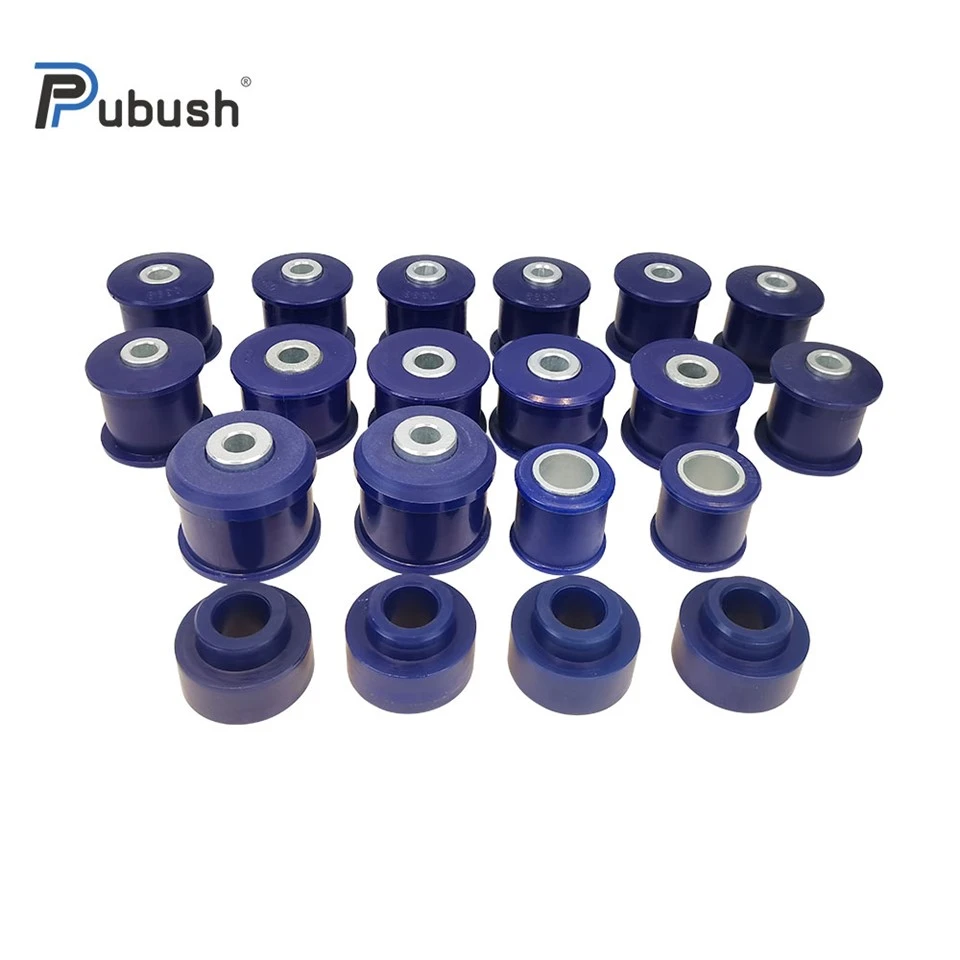

Performance PU Bushing Collection

Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of performance pu bushing collection in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable performance pu bushing collection from our factory. We also accept customized orders.

NISSAN PATROL 1997-2016-Y61 GU Cab Chassis(Coil Spring Front & Rear)
NISSAN PATROL 1997-2016-Y61 GU Cab Chassis(Coil Spring Front - Leaf Spring Rear)
NISSAN PATROL 1997-2016-Y61 GU Wagon

Front and Rear

Radius Arm to Differential Mount Bushing Kit

● 24mm socket and ratchet
● 19mm & 24mm combination ring spanners
● Hydraulic workshop press

1.The radius arms can be removed with the vehicle sitting on the ground at its normal ride height. Always work on only one arm at a time, and use a bottle jack under the differential housing to prevent it from twisting during the process.

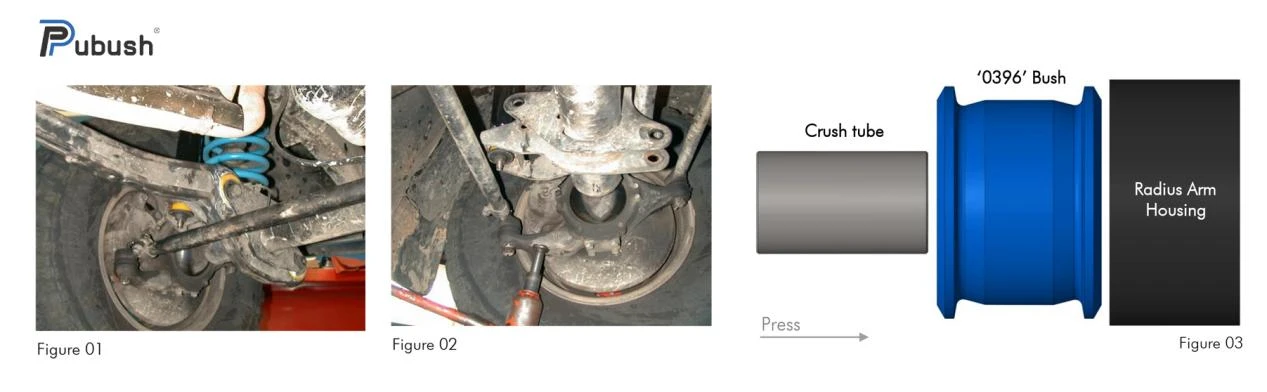

2.Remove the fastener that secures the front radius arm to the chassis. On Nissan Patrols, this is a pin-style mount with a nut; on Toyota models, it is a bushing mount with a nut and bolt (see Figure 01).
3.Undo the 24mm nuts and bolts that connect the front radius arm to the differential. It is recommended to loosen the fasteners on both arms and use a bottle jack under the diff to prevent rotation. On Nissan Patrols, removing the track rod on one side may be required for clearance. On long-wheelbase (LWB) models, the stabilizer bar must also be removed (see Figure 02).
4.Detach the front radius arm, then use the hydraulic press to push out the two original differential-side rubber bushings.
5.Press the new '0398' polyurethane bushing into the arm. Next, apply the supplied white grease to the inner bore of the bushing and the outer surface of the crush tube, then slide the tube into place (see Figure 03).
6.Refit the radius arm by reversing the removal steps. Repeat the entire procedure for the opposite side.
7.Once both sides are complete, perform a full wheel alignment to restore correct suspension geometry.

● Crush tube: Metal sleeve for structural support and alignment
● '0396' Polyurethane Bushing: The wear-resistant core component, pressed into the housing
● Radius Arm Housing: The main body of the radius arm where the bushing is installed

✔ Drivers who appreciate sharp handling and precise steering often find that factory-installed rubber bushings lack the necessary rigidity. Experience a dramatic transformation in your vehicle's handling and responsiveness by installing the newly engineered Performance PU Bushing Collection. Without a doubt, whether you are navigating winding canyon roads, cruising on high-speed highways, or enjoying spirited weekend drives, this kit ensures total control.
✔ Crucially, it effectively eliminates suspension deflection under lateral loads, keeping your wheels perfectly aligned for maximum cornering grip. It represents a vital upgrade for anyone looking to maximize steering feedback and build a highly responsive chassis. This advanced suspension kit delivers the perfect combination of structural strength, steering response, and dependable long-term road safety.

✔Engineered from premium industrial-grade polyurethane, these bushings offer the perfect combination of structural stiffness and flexible damping. Specifically, the material formulation is specifically designed to resist degradation from exposure to grease, road grime, solvents, and UV radiation. With an optimized durometer, these bushings are rigid enough to eliminate suspension play, yet resilient enough for comfortable daily driving.
✔ Many bushings in the kit feature knurled internal bores and grease grooves that retain lubrication for quiet, squeak-free operation. As a result, you get a highly reliable, high-performance suspension component that delivers consistent performance under all conditions. As a result, you get a highly reliable, high-performance suspension component that delivers consistent damping performance under all operating temperatures.

✔ Drivers will immediately notice that the Performance PU Bushing Collection delivers crisp steering response, eliminating the spongy feel of old rubber. In turn, by keeping the suspension arms firmly positioned, it ensures your tires maintain a perfect contact patch with the pavement. Advanced NVH tuning guarantees that while steering feel is significantly sharpened, cabin comfort is preserved for daily commutes. It enhances driver confidence by providing direct feedback through the steering wheel, making the chassis feel agile and responsive.
✔ It maximizes tire contact patch area, ensuring that your vehicle's grip levels remain optimal at all times. By choosing this premium component, you are ensuring your chassis remains extremely stable and composed during high-speed highway driving.

✔ Designed for long-term reliability, these components resist drying, cracking, and rotting, maintaining performance for the life of the vehicle. Ultimately, by reducing the frequency of suspension rebuilds and wheel alignments, it provides a highly cost-effective upgrade for car owners. Precision-molded to exact original equipment specifications, the components offer a hassle-free, direct-fit installation with no modifications.
✔ Trust this high-grade polyurethane kit to deliver unmatched stability, reliable control, and outstanding road performance. Upgrade to this premium suspension solution today to restore your vehicle's original steering feel and ride quality. Upgrade to this premium suspension solution today to restore your vehicle's original steering precision and legendary ride quality.

✔ All Pubush bushings carry a 1-year warranty against material & workmanship defects, valid from delivery date. Warranty excludes damage from misuse, neglect or wrong installation.
