Liquid Polyurethane Bushing Kit

Xingtai Refined Machinery and Auto Accessory Co., Ltd. is one of the leading manufacturers and suppliers of liquid polyurethane bushing kit in China. We are committed to providing high quality auto parts made in China with low price. Welcome to wholesale bulk durable liquid polyurethane bushing kit from our factory. We also accept customized orders.

NISSAN NAVARA 2015-on - NP300 4WD Single & King Cab (Leaf Spring Rear)

Front and Rear

Nissan Navara D40

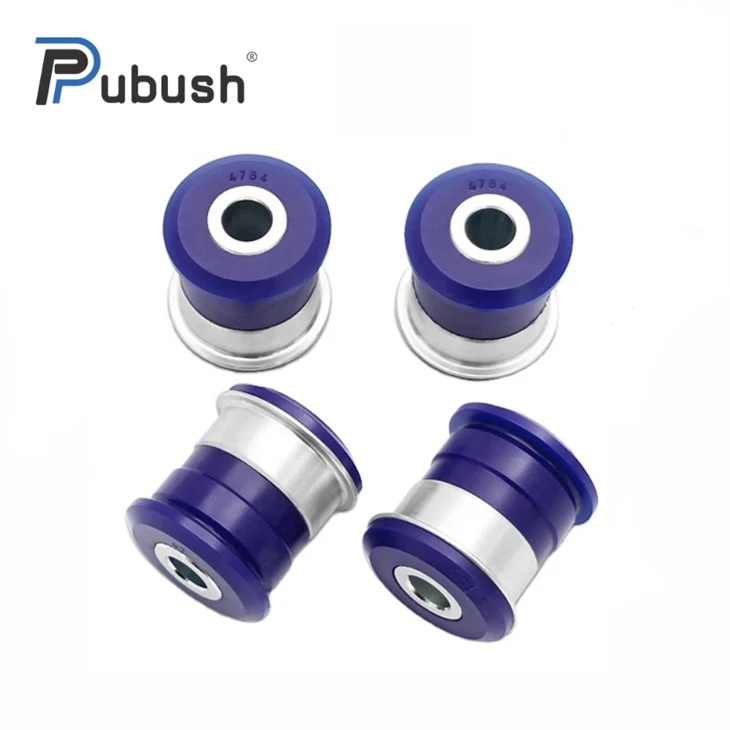

Front Upper Control Arm Inner Bushing

Note: Polyurethane bushings must be fitted to both sides of the vehicle.

Wheel-align the vehicle before the job is started and note settings;

With the vehicle on jack stands, remove the upper control arms;

Note: The driver's side rear bolt requires the steering shaft be disconnected in order remove bolt. Lock the steering wheel in the centre to prevent the clock spring from turning. Then mark the splines to ensure correct alignment when reconnecting. The bolt can be re-fitted from the opposite direction for easy removal in the future.

 Remove the original bushes including the steel shell;

 Using the appropriate pressing tools support the control arm and press in the new bushes according to your desired setting;

 Apply the grease supplied to the bore of the bush and the steel crush tubes. If you have SPF4784XK with offset tubes push in the crush tubes as per drawing to give maximum camber change;

 Refit the control arms to the car, making sure you tighten the bolts with the arm held at 90 degrees to the mounts to give you the maximum camber offset;

 Re-assembly the rest of the car. Carry out a wheel alignment.

Note: manufactures torque setting must be used on all bolts and nuts.

Depending on the kit you have purchased, the camber can be adjusted. Check the before wheel alignment to see what setting you require.

Left Hand Side Rear View

RFK4784K – standard replacement kit

RFK4784K – camber +/- both sides, approx. 0.5 degree change

 Our Shock Absorber Control Arm Bush Kit is a professional suspension upgrade component tailored for specific 4WD models, engineered to enhance driving stability, handling precision, and component durability. Made from high-quality Polyurethane+Steel, this kit leverages the unique properties of polyurethane-combining the strength of plastic with the flexibility of rubber-to deliver superior performance compared to traditional rubber bushings. A key highlight of our offering is the advanced liquid polyurethane bushing kit, which features enhanced structural integrity and adaptive performance, making it ideal for both daily driving and light off-road scenarios.

 Upgrade your driving experience with polyurethane bushings that strike the perfect balance between performance and comfort, designed for drivers who demand reliability without compromise. Unlike overly stiff aftermarket options that create harsh ride quality, our premium polyurethane material offers controlled flex that reduces road noise, vibration, and harshness (NVH) while eliminating the sloppy handling of aged rubber bushings. This results in a smoother, more stable ride on highways and improved control on off-road terrain.

 Additionally, their resistance to environmental factors like UV rays, oil, and road grime means they won't swell, harden, or degrade like rubber, maintaining their performance characteristics for the long haul. For off-road enthusiasts, fleet operators, and daily drivers alike, these bushings are an investment in consistent performance, reduced maintenance, and peace of mind.

 All Pubush bushings carry a 1-year warranty against material & workmanship defects, valid from delivery date. Warranty excludes damage from misuse, neglect or wrong installation.
